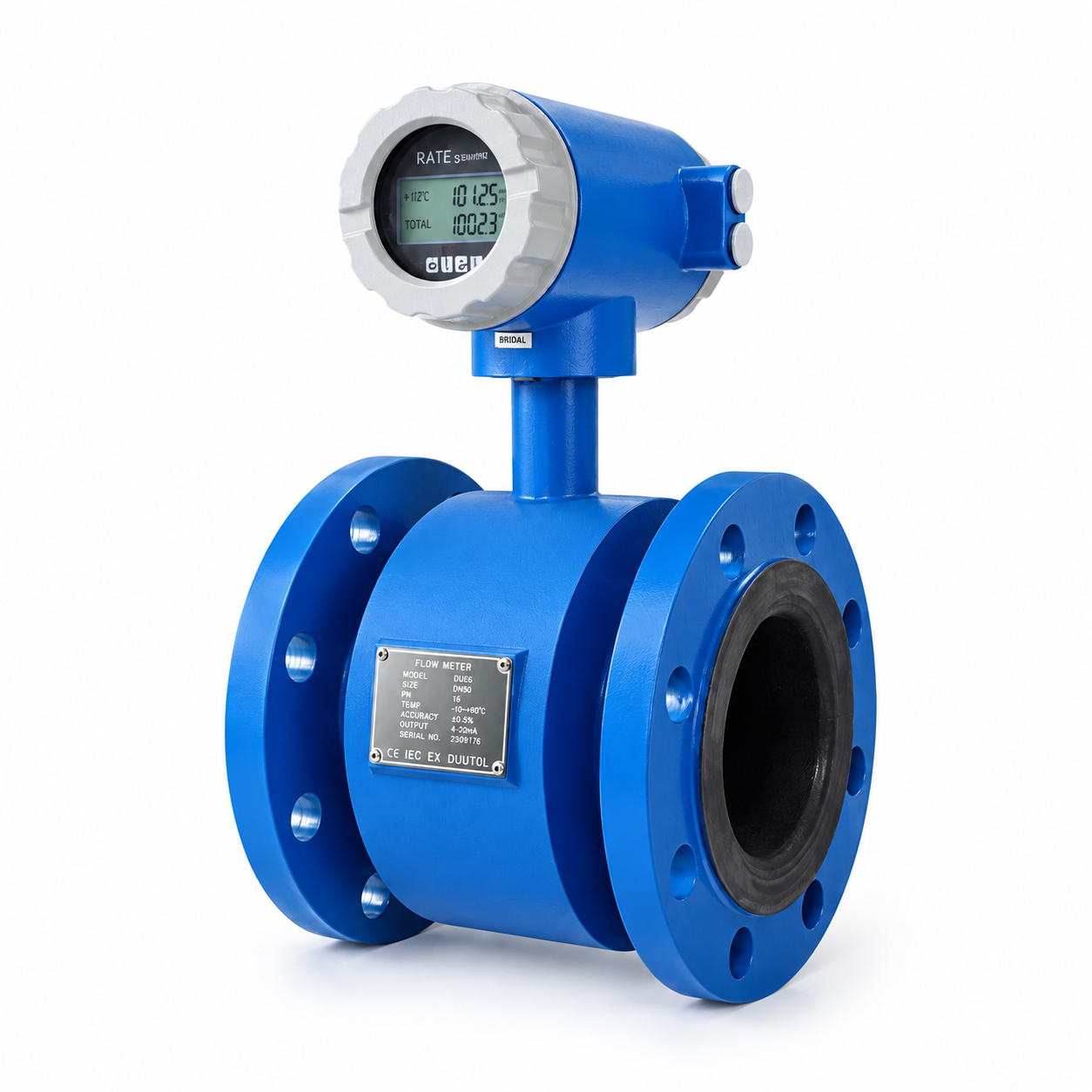

ELECTROMAGNETIC FLOW METER

Specifications

Mechanical Data:

• Materials: Electrode: 316L (Stainless Steel), Hastelloy, Titanium, Tantalum, etc. Liner: PTFE, Soft Rubber, Hard Rubber. Measuring tube: SUS 304  Body & Flange: Carbon Steel. Ground Ring: 316L (stainless steel), HC, Ti, Ta, Cu.

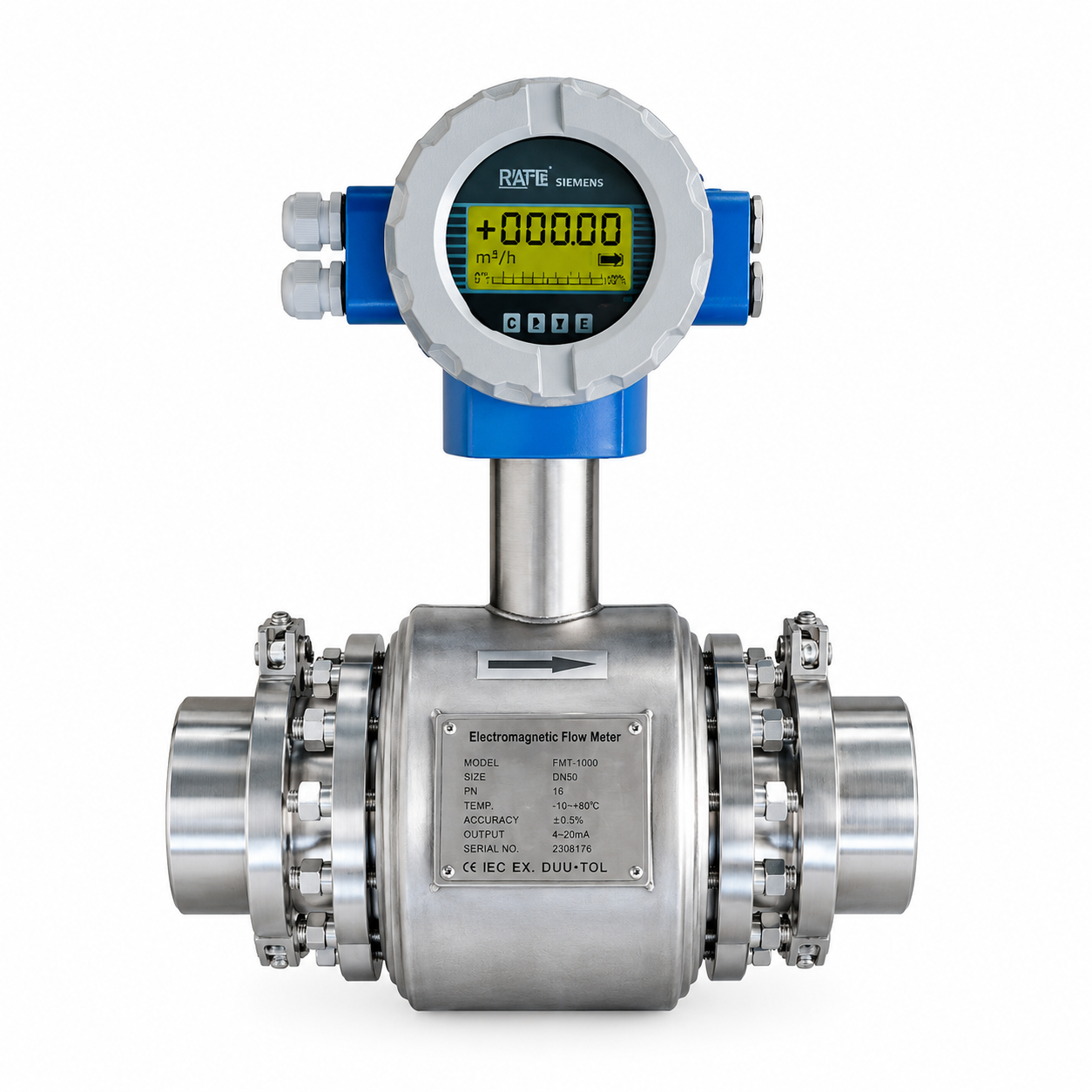

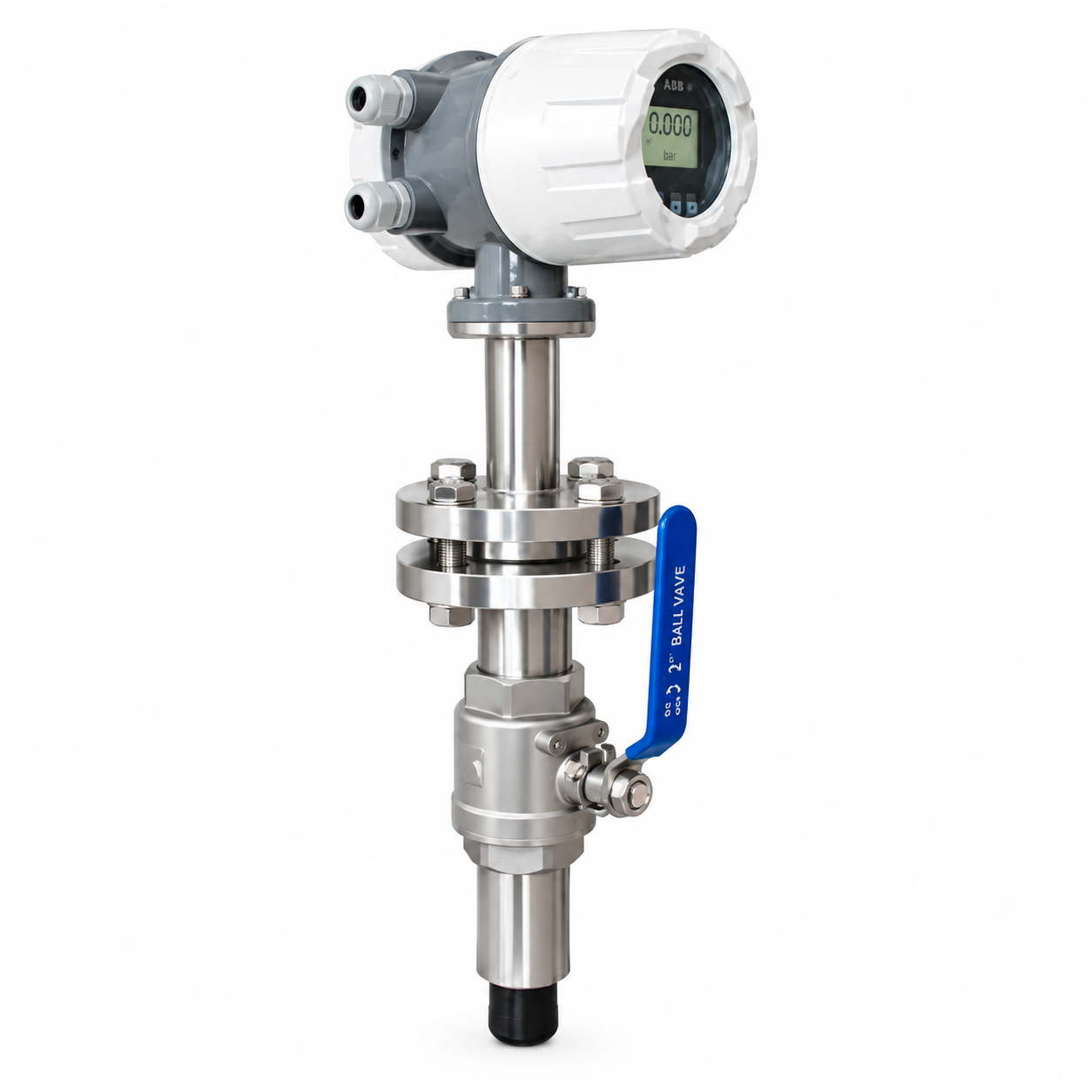

• Connection of Flange: National Standard GB9119-88 (DIN2051, BS4504), JIS, ANSI. Screw. Insertion type, Tri-clamp for sanitary application.
• Ambient Environment: Temperature: -Sensor: -40 to 80°C; Transducer: -15 to 50°C. Humidity: ≤85% (RH) at 20°C.
• Measurable Fluid: Water
• Fluid Temperature: -20°C~80°C, 80°C~130°C, 130°C~180°C Depending on Lining Material
• Pressure: 10Bar, 16Bar Standard, 40Bar
• Flow Velocity: Limit of Span 0.5~10m/s, 1~5m/s Recommended
• Accuracy: 3% (Option), 0.5%, 1.0% of F.S.
• Protection Ratings: Integral Type: IP65. Remote Type: Sensor IP68, Transducer IP65.
• Ex-Proof Protection: Exde ib ii BT2

Electrical Data:

• Power Supply: 220VAC ±10%, 50-60Hz, 24VDC ±10%. Battery power (3-5years)
• Power Consumption: ≤8W
• Output Signals: 4~20m ADC, Load ≤ 750ohm$, 0~3kHz, 5V with Source and Changeable Width. High terminal and Effective Frequency Output Voltage Output: 0-5 V DC
• Communication Interface: RS232, RS485, HART
• Display Unit: Flow rate (4-digits), Totalizer (9-digits), Velocity, Alarm status. Scale unit: selectable of L/h, L/m, L/s, m3/h, m3/m, m3/s .Flow direction: selectable by program. 3 Digits display below of decimal points. K-factor: 5 digits. Mounting: Integral type; Remote Type
• Data Storage: Data Logger for 2-3years.

Approval:

• Compliance:  ISO9001-2008, CE, EMC Directive 2014/30/EU
